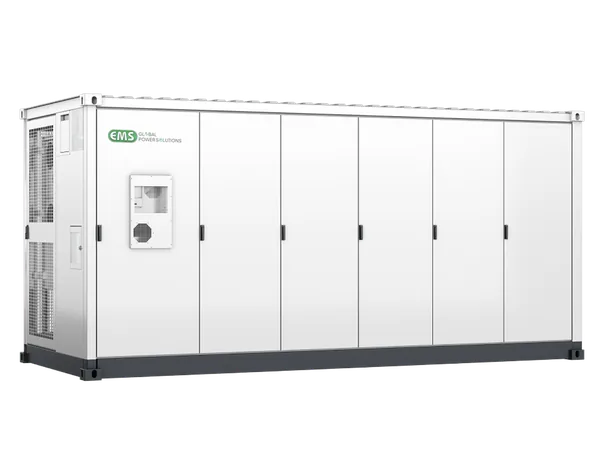

Tera G1
3.44 MWh of storage in one outdoor container, for grid support and renewable integration.
- Rated energy capacity
- 3.44MWh
- LFP cells, 3.2 V
- 280Ah
- Operating temperature
- −20 to 55°C
Key features
Built for the grid
- Grid stabilisation and support
- Peak shaving and load management
- Solar and wind energy storage
Safe and reliable
- LFP cells, 3.2 V 280 Ah
- Liquid cooling keeps cell temperatures stable
- Fire detection and suppression built in
Scales with the project
- Modular architecture
- Intelligent monitoring
- IP54 enclosure for outdoor sites
Main parameters
Rated AC power depends on the inverter configuration chosen for the project.
Datasheets
| Storage | |
|---|---|
| Rated energy capacity | 3.44 MWh |
| Cells | LFP, 3.2 V 280 Ah |
| Charge and discharge rate | 0.5P |
| Rated battery voltage | 1228.8 V (1075.2–1382.4 V) |
| AC power | |
| Rated AC power | Set by the inverter chosen for the project |
| Other | |
| Cooling | Liquid cooling |
| Monitoring | Integrated, intelligent monitoring |
| Fire protection | Fire detection and suppression |
| Protection | IP54, outdoor installation |
| Operating temperature | −20 to 55 °C |
| Size and weight | |
| Dimensions (L × W × H) | 6058 × 2438 × 2896 mm |
| Weight | About 35 t |
