Products / Ten systems
Ten high-density, plug-and-play systems for EV charging and energy storage, from a charger you wheel to the car to storage built into a container. Most travel to the job, so you can have power on site without waiting for a grid connection or building work.
Mobile energy storage charging station
A battery and DC fast charger on a trailer. Park it, tow it or mount it on a vehicle to charge EVs, back up a site or run equipment from its industrial sockets, with no permits or building work.
| Capacity | DC output |
|---|---|
| 100 kWh | 120 kW |
| 200 kWh | 180 kW |
| 400 kWh | 360 kW |
The range
Sorted by the kind of job they do. Each listing shows the figures people usually ask for first; for anything else, just ask.
Battery storage and fast charging you can tow, drive or ship to site.
Containerised storage charging station
Two megawatt-hours in a modular container. Six charging guns, each rated at up to 200 kW, can work at the same time, and industrial outlets cover site equipment. When the work moves on, the container is transported to the next location.
Mobile battery energy storage
200 kWh LFP battery, 200 kW output, liquid cooling and IP54 protection. Dual-voltage input and output let it share the load with the grid, solar or a diesel generator, and more units can be added as demand grows.
Fast chargers on wheels, from the grid, a battery or solar.
Movable DC fast charger
Take the charger to the vehicle instead of the vehicle to a post. It gives 60 kW to one car or 30 kW each to two, with a 21-inch touchscreen and an RFID reader at the front. Cars, trucks, buses, boats and off-highway machines all charge from it.

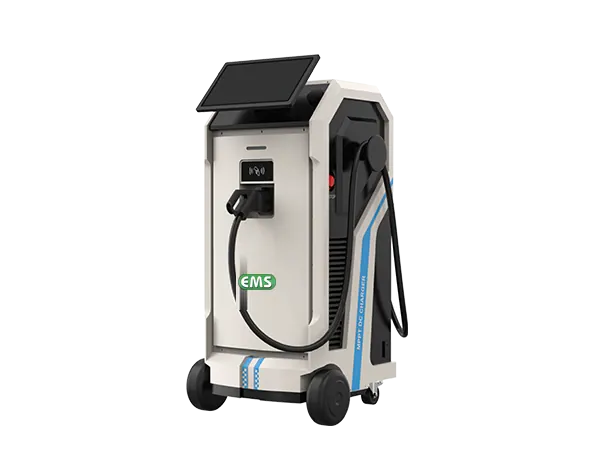

Solar DC fast charger
Wire solar panels straight into it and charge EVs from the sun. Four MPPT modules follow the panels as clouds pass and the light shifts, so the charge stays steady.
Chargers that drive to the vehicle, so car parks need no fixed posts.
Remote-controlled charging robot
An operator steers it across the car park by remote control and plugs in wherever the car is parked. Inside are a 104 kWh LFP battery, 60 kW of DC output and a CCS1 or CCS2 connector. Suited to car parks, industrial parks and motorway services.
Automatic charging robot
Nobody has to handle a cable. iACharge finds the car, drives itself over, connects with its robotic arm and returns to its base to recharge. It carries 106 kWh and charges at 80 kW.
Cabinets and containers for sites, buildings and the grid.

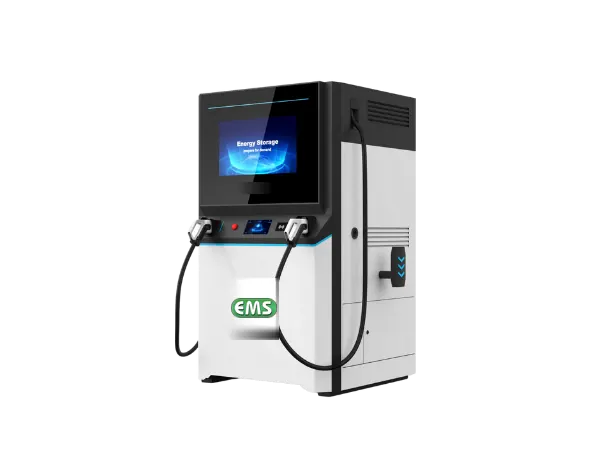

Integrated storage and charging cabinet
110 kWh of storage and a DC charger in one cabinet. Charge one car at 180 kW or two at 90 kW each, top the battery up from solar panels and run equipment from the industrial outlets. A solar charging station goes up with very little building work.

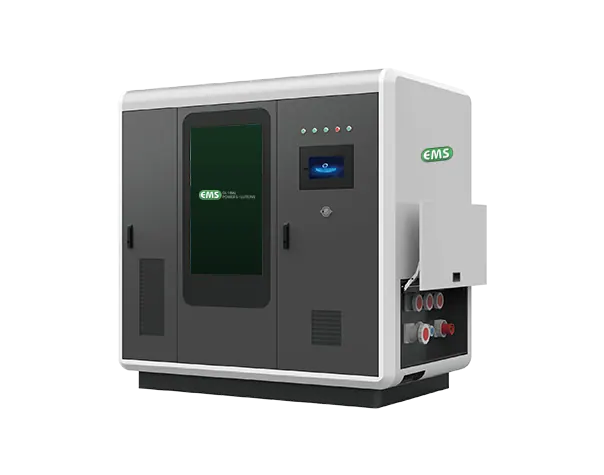

Commercial and industrial energy storage
218 kWh in a compact cabinet with the PCS and BMS already inside, and live monitoring over the network. Use it to shave peaks, fill valleys and keep power on where an interruption isn't an option. Extra units slot in when you need more.
Containerised utility-scale storage
Utility-scale storage, built to the size you specify. The LFP batteries arrive with power conversion, monitoring, communications and fire protection integrated, which keeps installation and commissioning simple.
Compare
Headline figures from each specification. iTrailer comes in three sizes, and iContainer is built to the capacity you need.
| System | Storage | Output | Gets to site |
|---|---|---|---|
| iTrailerMobile energy storage charging station | 100 / 200 / 400 kWh | 120 / 180 / 360 kW | Fixed, towed or vehicle-mounted |
| iCabinetIntegrated storage and charging cabinet | 110 kWh | 180 kW | Fixed |
| iMChargerXMovable DC fast charger | – | 60 kW | Wheeled |
| iMContainerContainerised storage charging station | 2 MWh | 6 × 200 kW | Transportable container |
| iMSmartRemote-controlled charging robot | 104 kWh | 60 kW | Remote-driven |
| iMChargerSSolar DC fast charger | – | High-power DC | Wheeled |
| iMBaseMobile battery energy storage | 200 kWh | 200 kW | Mobile |
| iFreezerCommercial and industrial energy storage | 218 kWh | – | Fixed |
| iAChargeAutomatic charging robot | 106 kWh | 80 kW | Self-driving |
| iContainerContainerised utility-scale storage | Built to order | Built to order | Fixed |
Find your system
A quick guide to where each system fits best. Some jobs suit more than one, so the first name is usually the place to start.
Start with the challenge
Share the location, the load and what is getting in the way. Our team will help you work out which system, and how many, the job needs.
